Description

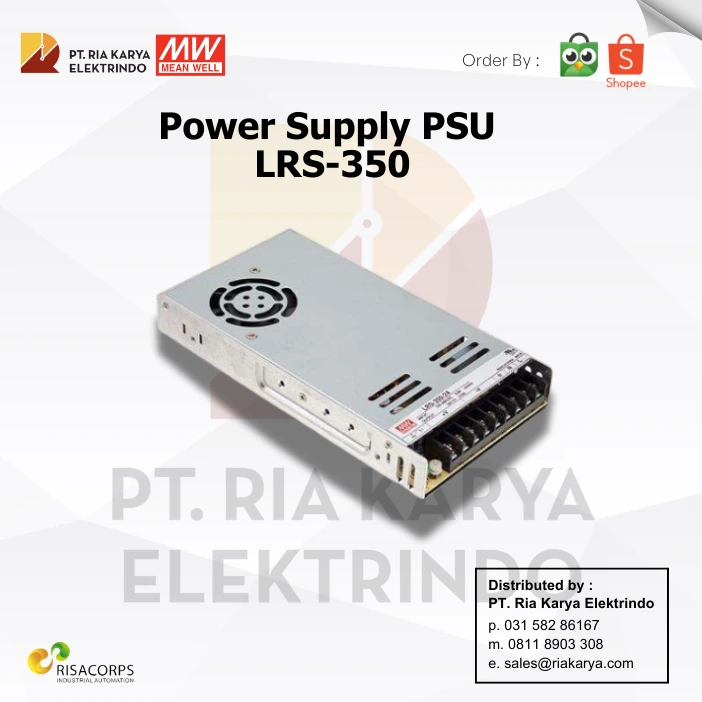

Spesifikasi Keseluruhan
- Input Voltage: 85 ~ 264V AC / 120 ~ 373V DC
- Efisiensi: 88-90% (tergantung model)
- Proteksi: Over Voltage, Over Load, Short Circuit, Over Temperature
- Suhu Operasional: -30°C ~ +70°C
- Pendinginan: Konveksi udara & kipas internal (tergantung model)
- Material Casing: Logam berlubang untuk ventilasi maksimal
- Dimensi: 215 x 115 x 30 mm
- Berat: 0.9 kg
- Aplikasi: CCTV, sistem kontrol industri, LED signage, perangkat komunikasi, dan berbagai kebutuhan daya lainnya.
Spesifikasi Per Tipe
- LRS-350-12: 12V DC / 29A / 348W / Ripple & Noise: 120mVp-p
- LRS-350-15: 15V DC / 23.2A / 348W / Ripple & Noise: 150mVp-p
- LRS-350-24: 24V DC / 14.6A / 350.4W / Ripple & Noise: 150mVp-p
- LRS-350-36: 36V DC / 9.7A / 349.2W / Ripple & Noise: 200mVp-p
- LRS-350-48: 48V DC / 7.3A / 350.4W / Ripple & Noise: 200mVp-p
📌 Catatan: Harga dapat berubah sewaktu-waktu. Hubungi CS untuk mendapatkan info harga terbaru.
