Mean Well Din Rail PSU HDR-30 Series

Compare
Categories: , Brand:

Mean Well HDR-30 Series adalah power supply DIN Rail 30W dengan input 85-264V AC, efisiensi tinggi, dan proteksi lengkap. Tersedia dalam output 5V, 12V, 15V, dan 24V, cocok untuk otomasi industri dan kontrol panel.

Description

Spesifikasi Mean Well HDR-30 Series

✅ Input

  • Tegangan: 85-264V AC atau 120-370V DC
  • Frekuensi: 47-63Hz

✅ Output (Tersedia beberapa varian)

  • HDR-30-5 → 5V DC / 4A
  • HDR-30-12 → 12V DC / 2A
  • HDR-30-24 → 24V DC / 1.5A

✅ Performa & Proteksi

  • Efisiensi hingga 91%
  • Proteksi: Overload, Overvoltage, Short Circuit
  • Ripple & Noise: ≤120mVp-p
  • Tahan lonjakan tegangan hingga 300V AC selama 5 detik

✅ Fisik & Lingkungan

  • Mounting: DIN Rail (TS-35/7.5 atau 15)
  • Dimensi: 35 x 90 x 54.5 mm (2 TE)
  • Berat: ± 140g
  • Suhu Operasional: -30°C hingga +70°C
  • Sertifikasi: CE, EAC, UL508, EN62368-1

Additional information

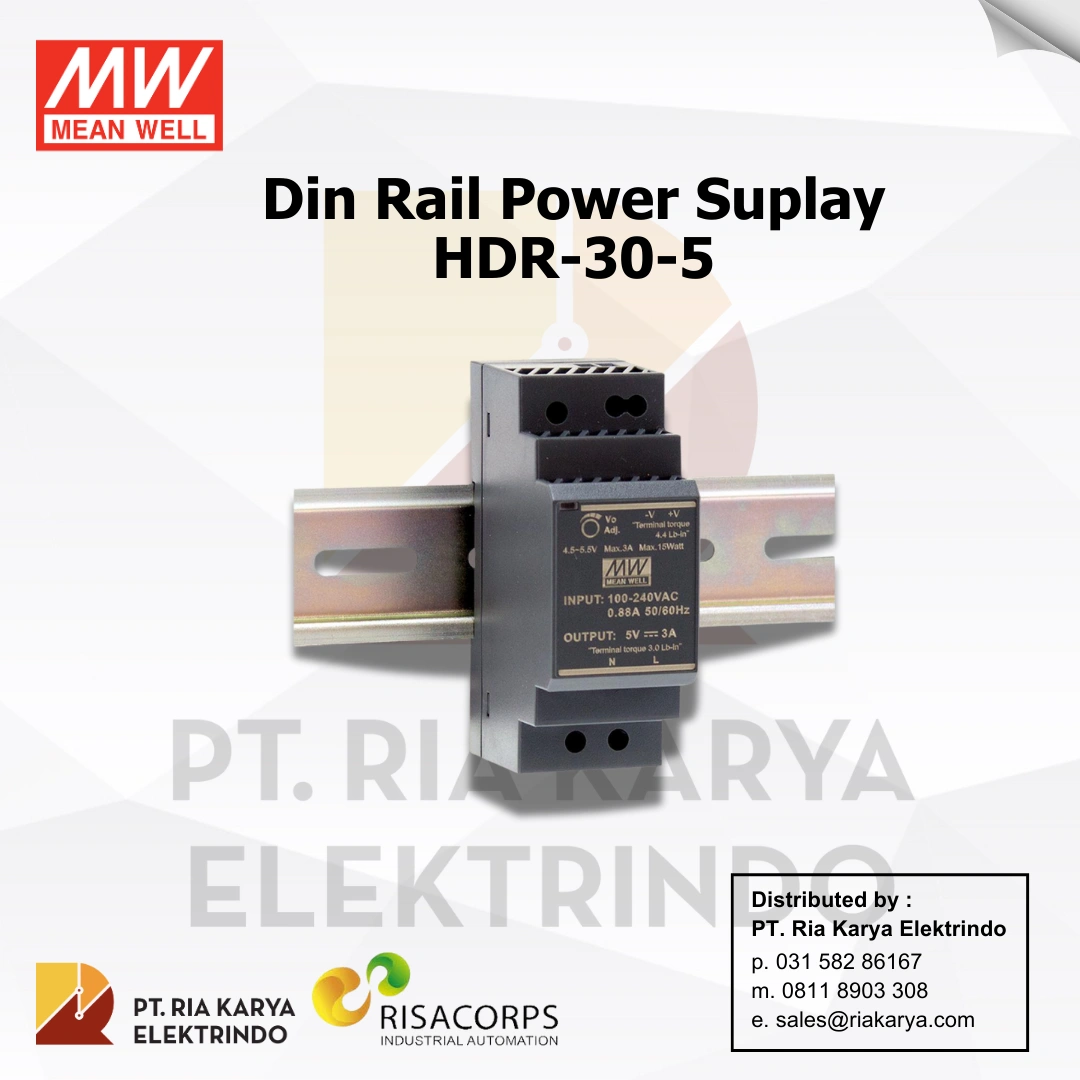

HDR-30-5

✅ HDR-30-5

Output: 5V DC / 4A
Efisiensi: 83%
Ripple & Noise: ≤80mVp-p

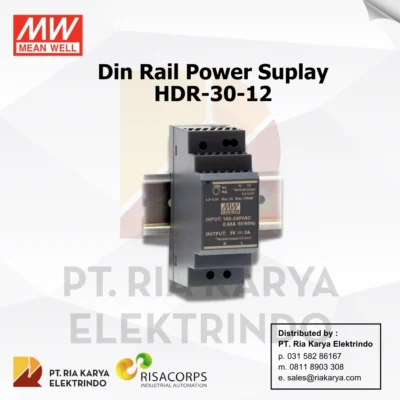

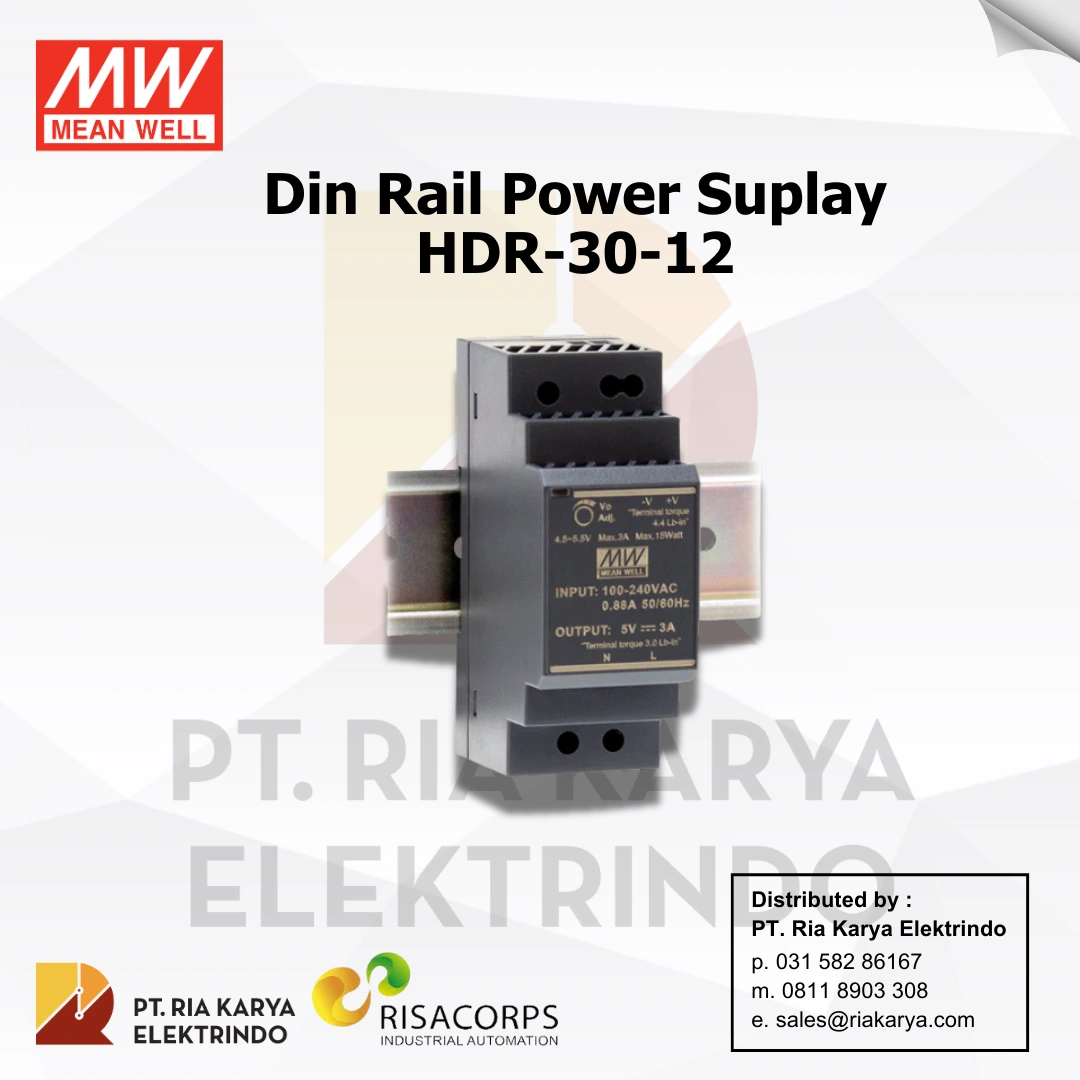

HDR-30-12

✅ HDR-30-12

Output: 12V DC / 2A
Efisiensi: 88%
Ripple & Noise: ≤120mVp-p

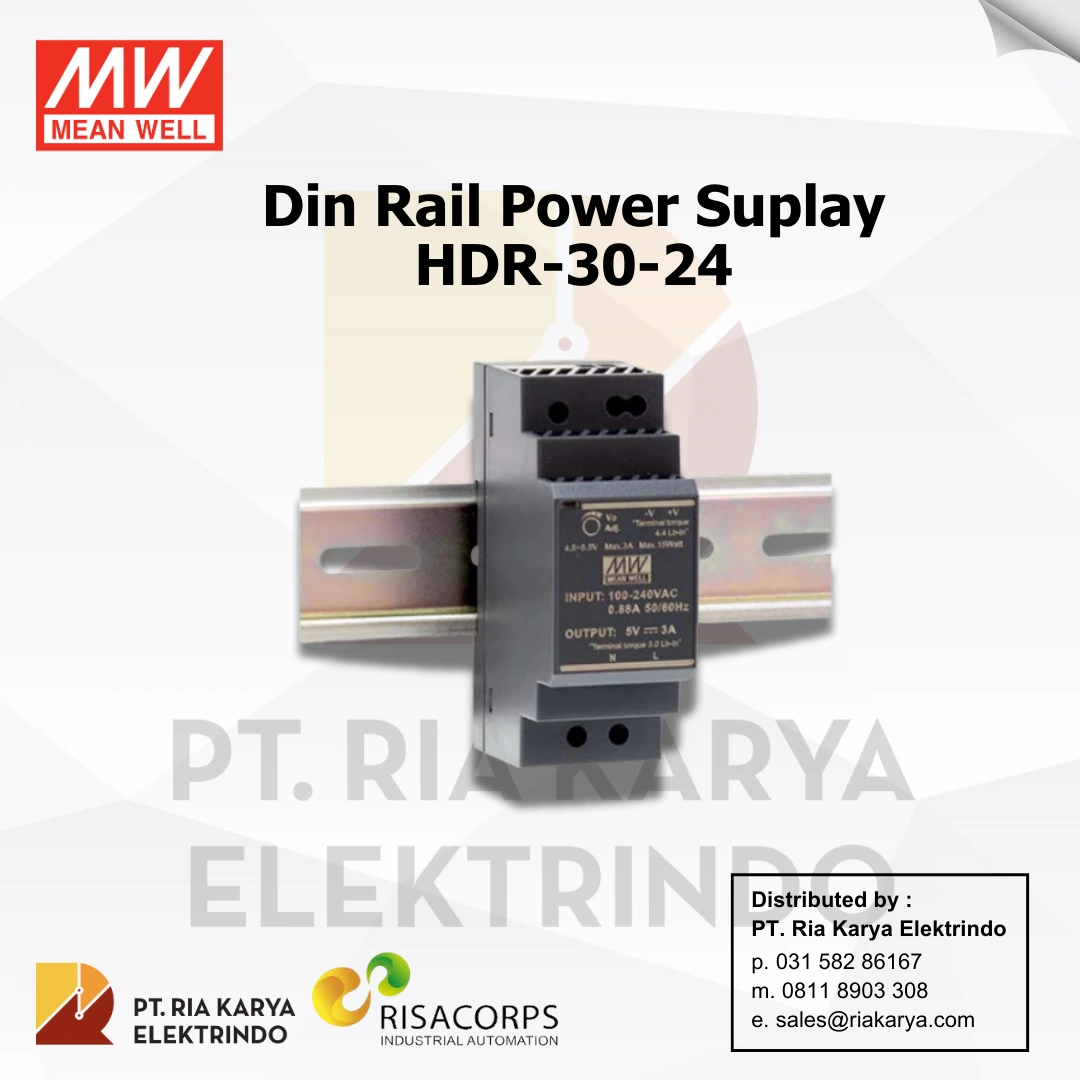

HDR-30-24

✅ HDR-30-24

Output: 24V DC / 1.5A
Efisiensi: 90%
Ripple & Noise: ≤150mVp-p
